Citroen e-Relay dimensions, payload and specs

Below are the full details of the dimensions, load space and payload for the Citroen e-Relay electric van.

For more information on how it drives, what the interior is like and whether it is good value or not, head to the main Citroen e-Relay review.

Citroën Relay e-Relay capacity & size

4 out of 5 4.0

The Citroen e-Relay comes in three main body styles – panel van, window van and chassis cab. There are two lengths of chassis cab and three for the panel van but the latter only comes with one height.

Citroen e-Relay dimensions:

Here you’ll find the full exterior and load space dimensions. It's all taken from the official information but we've put it together in an easy-to-digest format.

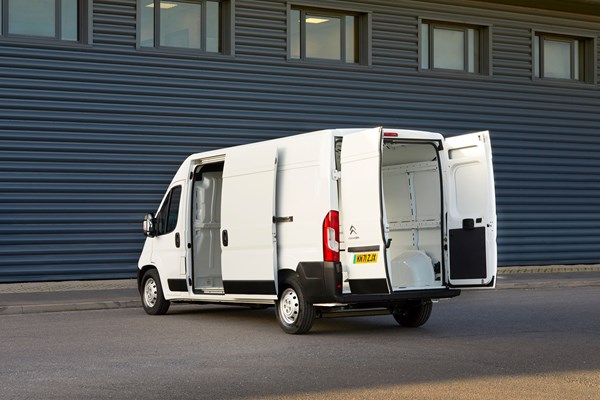

Citroen e-Relay all doors open

Citroen e-Relay electric van length:

 Citroen e-Relay  L2  L3  L4
 Exterior length  5,413mm  5,998mm  6,363mm

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van height:

 Citroen e-Relay  H2
 Exterior height  2,522mm

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van width:

 Peugeot e-Boxer  All models
 Exerior width excluding door mirrors  2,050mm

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van wheelbase

 Citroen e-Relay  L2  L3  L4
 Wheelbase  3,450mm  4,035mm  4,035mm

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van load area length:

 Peugeot e-Boxer  L2  L3  L4
 Max load length at floor   3,210mm  3,705mm  4,070mm
 Max load length at mid-height  2,914mm  3,555mm  3,920mm

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay side opening

Citroen e-Relay electric van load area height:

 Citroen e-Relay  H2
 Max load height  1,932mm

Citroen e-Relay electric van load area width:

 Citroen e-Relay  All models
 Max load width  1,870mm
 Width between wheelarches   1,422mm

Citroen e-Relay electric van load volume:

 Citroen e-Relay  L2  L3  L4
 Load volume  11.5m3  13.0m3  15.0m3

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van rear loading sill height:

 Citroen e-Relay  All models
 Rear step-in height  535-565mm

Citroen e-Relay electric van door sizes:

 Citroen e-Relay  All models
 Side door height  1,755mm
 Side door width  1,250mm
 Rear door height  1,790mm
 Rear door width  1,562mm

Citroen e-Relay rear doors open

Further info about the Citroen e-Relay load area

All panel vans come with a fixed steel bulkhead and a 12v socket in the load area.

L2 models come with eight load-lashing points, L3 and L4 models get 10.

Citroën Relay e-Relay payload, weight & towing

3 out of 5 3.0

There are two gross vehicle weights of Citroen e-Relay: 3,500kg (3.5 tonnes) and 4,000kg (4.0 tonnes) and the higher of these two comes with a bigger payload as a direct result. However, you can drive both on a standard licence, thanks to a special derogation for alternative fuel vehicles.

Citroen e-Relay electric van payload ratings

 Citroen e-Relay  L2  L3  L4
 Payload at 3,500kg GWV   1.070kg  740kg
 Payload at 4,400kg GVW  1,150kg

Note: if viewing on mobile you may need to turn the screen sideways to view the whole table

Citroen e-Relay electric van towing capacity

The Citroen e-Relay can't tow, so it has zero towing capacity
