Ineos Grenadier Utility Wagon dimensions (2024)
The Ineos Grenadier Utility Wagon comes in a choice of two different layouts, with a two-seat or five-seater option.
Both are based on the same vehicle, though, and we have the full details of all the Grenadier’s dimensions – inside and out – below.
For more information on how it drives, head back to the full review.
There is only the one length of Ineos Grenadier for the time being, although the company plans to add more as time progresses. There will be an extended wheelbase that is set to be the same length as the Quartermaster pickup truck for example.
The Grenadier is marginally larger than the Land Rover Defender Hard Top in all directions but is shorter than the likes of the Ford Ranger pickup truck.
Ineos Grenadier Utility Wagon exterior dimensions
- Length: 4,895mm
- Width including door mirrors: 2,146mm
- Width without door mirrors: 1,930mm
- Height: 2,050mm
- Wheelbase: 2,922mm
Ineos Grenadier Utility Wagon load area dimensions and capacity
Ineos maximises the amount of space in the back of the Utility Wagon by moving the bulkhead and therefore the rear seats forward so you get 91cm more loading length versus the passenger Station Wagon. This has a detrimental impact on legroom, but does mean you can carry more stuff.
We have only tried the five-seater Grenadier Utility Wagon so far, but the facts and figures promise much more loading room, with space for a Euro pallet.

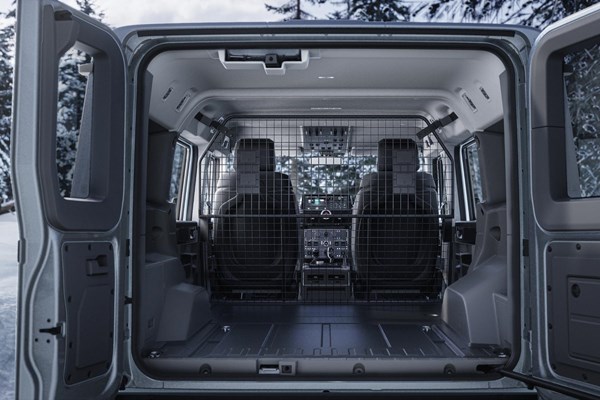

The doors are side-hinged with the right larger than the left – they are split on a 70/30 bias and the smaller opens first.
Grenadier Utility Wagon two-seat loading bay dimensions
- Maximum load length: 1,512mm
- Maximum load height: 1,047mm
- Maximum load width: 1,268mm
- Width between the wheelarches: 1,064mm
- Loading height: 899mm
- Standard load volume: 2,088 litres
Grenadier Utility Wagon five-seat loading bay dimensions
- Maximum load length: 890mm
- Maximum load height: 1,047mm
- Maximum load width: 1,268mm
- Width between the wheelarches: 1,064mm
- Loading height: 899mm
- Standard load volume: 1,255 litres
