Renault Kangoo E-Tech dimensions (2022-on)
The Renault Kangoo E-Tech was designed right from the start to have an electric version, so the good news is that this version has the same interior dimensions as the model with a standard engine. The payload and towing capacity aren’t the same, though.
Below are the full dimensions of the Renault Kangoo E-Tech electric van, including its payload and towing ability.
To find out how this electric small van drives, check out our main Renault Kangoo E-Tech review.
There will be two lengths of Renault Kangoo E-Tech, named ML and LL.
Renault Kangoo E-Tech ML exterior dimensions
- Length: 4,486mm
- Overall width: 2,159mm
- Width without door mirrors: 1,860mm
- Height: 1,864mm
- Wheelbase: 2,716mm
Renault Kangoo E-Tech LL exterior dimensions
- Length: 4,910mm
- Width: 2,159mm
- Width without door mirrors: 1,860mm
- Height: 1,854mm
- Wheelbase: 3,100mm

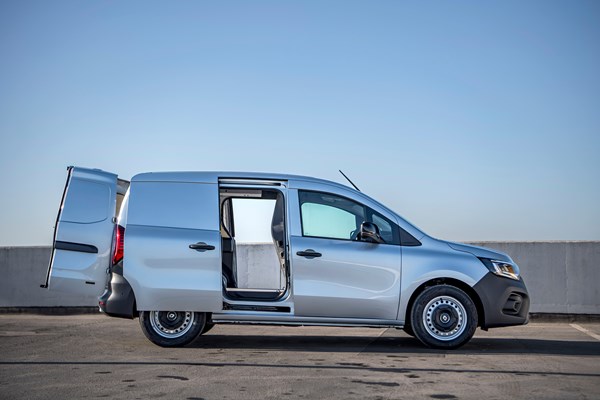

The loading bay in the Kangoo E-Tech is unchanged from the diesel model, which means you get a decent sized space with a low and easily accessible rear opening.
Renault Kangoo E-Tech ML load space dimensions:
- Maximum load length to bulkhead: 1,806mm
- Maximum load height: 1,215mm
- Maximum load width: 1,517mm
- Width between the wheelarches: 1,247mm
- Standard load volume: 3.3 cubic metres
Renault Kangoo E-Tech LL load space dimensions:
- Maximum load length to bulkhead: 2,230mm
- Maximum load height: 1,215mm
- Maximum load width: 1,517mm
- Width between the wheelarches: 1,247mm
- Standard load volume: 4.2 cubic metres
The Renault Kangoo E-Tech payload varies depending which version you go for. Oddly, though, it is the longer version that gets the higher rating. This is because the LL model gets a heavy duty rear axle that allows it to take more weight. The LL can take 764kg of payload, whereas the ML is only able to take 608kg. Usually it is the smaller, and therefore lighter, van that has the bigger payload.
Although the ML version of the diesel Kangoo can be fitted with the heavy duty rear axle, the E-Tech version can't, so this oddity will remain the case.
Renault Kangoo E-Tech towing capacity
The Renault Kangoo E-Tech isn’t the only electric van that can tow, but it does have one of the best towing figures – it can take a trailer weighing up to 1,500kg. This is the case for both the ML and LL versions.
