Vauxhall Movano dimensions (2024-on)

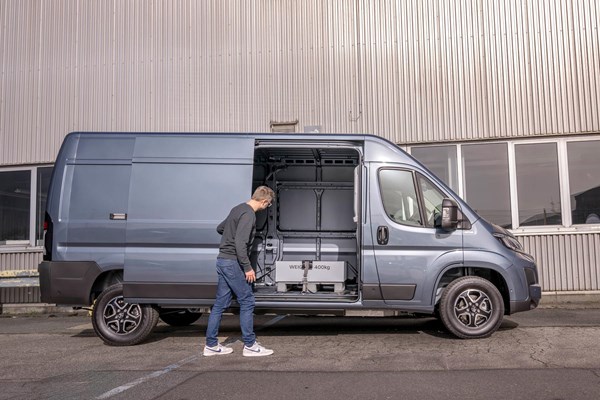

You are not short for choice in the Vauxhall Movano range when it comes to the number of lengths and heights on offer. There are three lengths and three heights to choose from, meaning you can get anything from a relatively small Movano right up to a particularly large one.
This translates to a series of vans with a wide range of interior space options, but pretty much all of the diesel models offer a decent payload, so you can be sure it should carry pretty much anything you need.
If you want more information on how the van drives, however, then head to our main Vauxhall Movano review.
The latest round of updates don't impact the loading bay and practicality of the Vauxhall Movano, so things haven't changed on a year-to-year basis. However, the relatively recent changes to the Movano's fundamental underpinnings mean that it is unlikely to be the same as the one you've had for some years now.
There are three lengths of Movano and three heights. The heights are H1, H2 and H3 but, slightly confusingly, the lengths start at L2, going up to L4. We don't get the shorter L1 in the UK.
Vauxhall Movano exterior dimensions
| L2H1 | L2H2 | L3H2 | L3H3 | L4H2 | L4H3 | |
| Length | 5,413mm | 5,413mm | 5,998mm | 5,998mm | 6,363mm | 6,363mm |
| Width including mirrors (mm) | 2,690mm | 2,690mm | 2,690mm | 2,690mm | 2,690mm | 2,690mm |
| Height (mm) | 2,254mm | 2,522mm | 2,252mm | 2,760mm | 2.522mm | 2,760mm |
| Wheelbase (mm) | 3,450mm | 3,450mm | 4,035mm | 4,035mm | 4,035mm | 4,035mm |
Vauxhall Movano interior load space dimensions
| L2H1 | L2H2 | L3H2 | L3H3 | L4H2 | L4H3 | |
| Load length on floor | 3,120mm | 3,120mm | 3,705mm | 3,705mm | 4,070mm | 4,070mm |
| Load length half height | 2,914mm | 2,914mm | 3,555mm | 3,555mm | 3,920mm | 3,920mm |
| Load bay height | 1,662mm | 1,932mm | 1,932mm | 2,172mm | 1,932mm | 2,172mm |
| Maximum load width | 1,870mm | 1,870mm | 1,870mm | 1,870mm | 1,870mm | 1,870mm |
| Width between wheel arches | 1,422mm | 1,422mm | 1,422mm | 1,422mm | 1,422mm | 1,422mm |
| Rear door opening height | 1,520mm | 1,790mm | 1,790mm | 2,030mm | 1,790mm | 2,030mm |
| Rear door opening width | 1,562mm | 1,562mm | 1,562mm | 1,562mm | 1,562mm | 1,562mm |
| Loading lip height | 503-506mm | 493-559mm | 503-557mm | 505-552mm | 594-602mm | 555-563mm |
| Load volume | 10m3 | 11.5m3 | 13m3 | 15m3 | 15m3 | 17m3 |
The Vauxhall Movano's payload is one of its fortes, as every version with a diesel engine has a decent official figure. It provides a strong towing ability across the range too.
Vauxhall Movano payload
The lightest payload for the diesel Vauxhall Movano is an impressive 1,235kg, so every version is capable of taking a serious weight in the back. This, perhaps unsurprisingly, is for the L4H3 version.
The best payload potential comes at the other end of the range, with the L2H1 version able to carry 1,425kg. Another thing of note - the automatic gearbox is heavier than the manual so reduces the payload by 60kg.
Vauxhall Movano towing capacity
The majority of the Movano range has a braked towing weight of 2,500kg, but there are a few exceptions. Some of the models are designated 'Heavy' and can tow 3,000kg.
